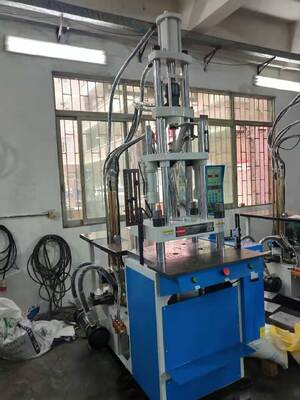

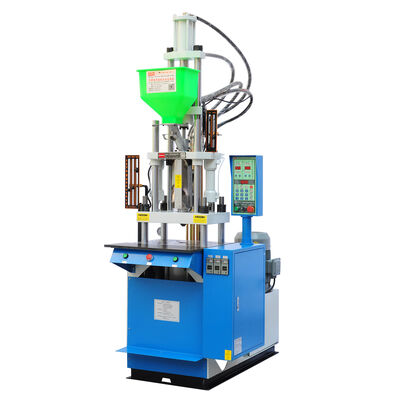

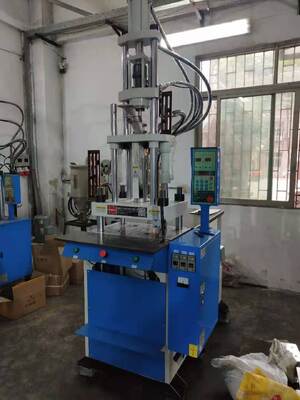

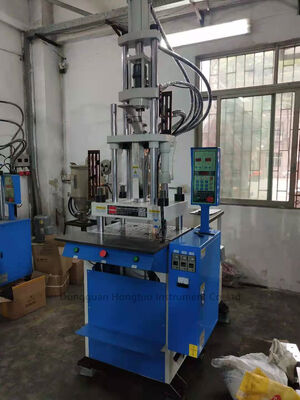

Vertical Injection Molding Machine KSU-250-ST

Features:

1. It is more suitable for the molding of precision plastic parts: multi-stage temperature control, multi-stage injection pressure,  and back pressure are multi-stage adjustable.

2. Vertical injection molding: four-column vertical clamping, vertical injection molding, suitable for insert molding and multi-purpose injection molding processes.

3. Save space: the size is 1.6m*1.0m*2.5m and the area is small.

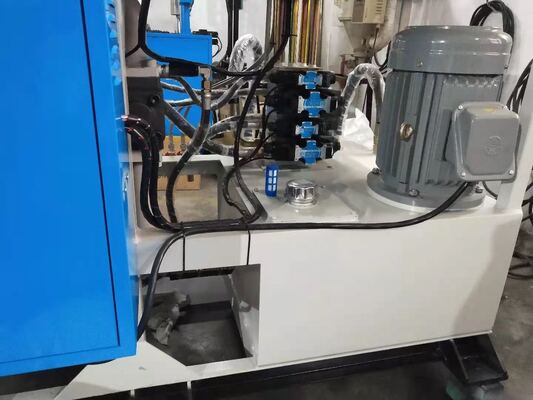

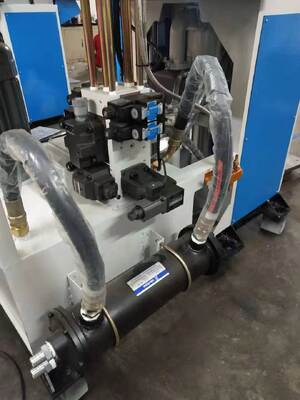

4. Imported parts: imported parts are used for electric control parts and hydraulic parts, which are quiet, precise, durable and worry-free.

5. Convenient to detect and adjust: Intelligent rich controller, intelligent error report, easy to detect and adjust.

6. Easy to take out the finished product: The lower mold is fixed / the upper mold is movable, which has a good positioning of the molded insert in the mold. The finished product has a hydraulic ejector device, which is very convenient and easy to take out.

7. Intelligent safety design: fast mold clamping, adjustable low pressure safety mold locking, equipped with infrared protection function, touch infrared automatic pause to protect the personal safety of workers. Two-button start mode: the mold can be closed only by pressing the start button with both hands at the same time (press the start button with both hands, so that both hands are at the start button position and not under the mold), which ensures the personal safety of the workers.

Application:

Applicable industries: plugs, sockets, connectors, switches, backpack buckles, chargers, electrical appliances, color palettes, hoses, hard tubes, soft boards, hard boards, mechanical parts, automobiles, meters, electronic parts, stationery, lampshades, Instrument shells, cabinets, computers, toothbrush handles, accessories, golf balls, corsages, antennas, badges, buttons, furniture, sports goods, decorations, glue flowers, small building materials, connectors, telecommunications, keychains, Toys, pens, cosmetic bottle joints, lenses, medical supplies, cams, zippers, daily products and other parts are injection molded.

Suitable for various thermoplastics: PC/ABS, PC, PS, PVC, PP, PU, PA, POM, PMMA, PET, PPO, PPS, ABS, PE, LCP, PBT, acrylic, melamine, 372, nylon , Polypropylene, polystyrene, etc.

Main Parameters:
